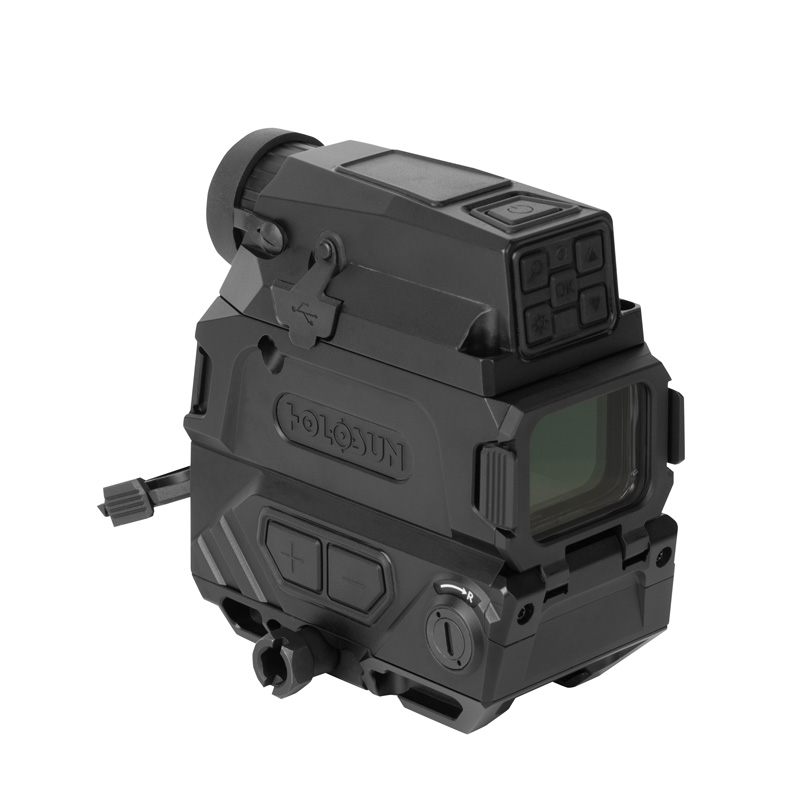

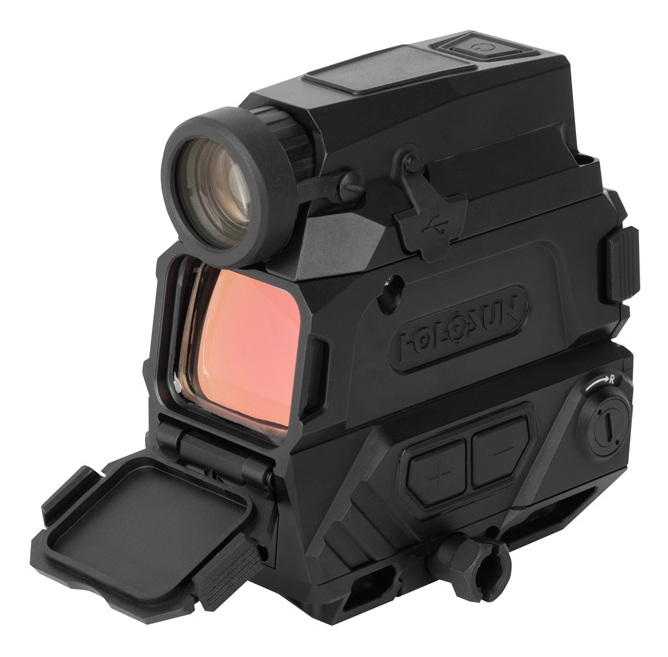

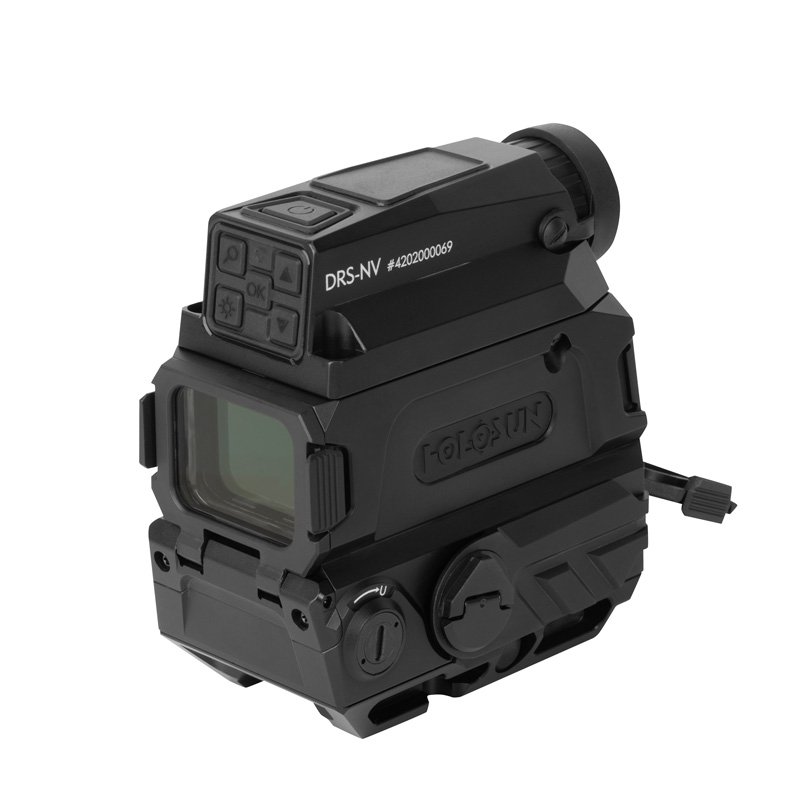

Holosun DRS-NV Digital Rifle Sight - Night Vision
[70157031]

The DRS-NV (Digital Rifle Sight-Night Vision) is a red dot and digital night vision fusion sight that combines Holosun’s red dot sight technology with digital night vision capability.



DRS-NV features an LED MRS (Multi-Reticle System) with three digital reticle options, 1024x768 resolution digital night vision sensor with up to 60fps, 8x digital zoom, digital image and video recording with on-board storage. The DRS is powered by two 18350 rechargeable flat-top batteries with 6 hour run time in full function mode and 8 hours of run time in observation mode. An onboard magnetic coupler connects DRS to USB power for charging the batteries or to a PC for downloading of recorded images and video.



DRS-NV units amplify light to improve low light visibility. Moonlight and starlight provide sufficient lighting in most cases, however, during periods where cloud cover blocks moonlight and starlight, an external infrared (IR) illumination source is needed. Holosun recommends one of our laser devices with IR Illumination such as the LE321, or LS321. Verify your local and/or state laws before attaching and IR illumination device to a firearm with a night vision device.



Notice 5/6/2024: An updated user manual is available on this product page for download. Page 16 has been updated to reflect an Auto-Off function instead of a Shake Awake function for the camera. The LED Red Dot System does feature our Shake Awake functionality while the camera system has an Auto Off function.



In the Box

• 2x 18350 Li-ion Rechargeable Batteries
• Multi Tool
• Wrench
• Lens Cloth
• USB Cable



Reflex Sight Data

• Light Source LED
• Wavelength 650nm
• Reticle 2 MOA Dot & 65MOA Circle
• Selectable Reticle Yes
• Shake Awake Technology Yes
• Memory Yes
• No Parallax Yes
• Unlimited Eye Relief Yes
• Magnificatin 1x
• Multi-Coatings Yes
• Brightness Setting 8 DLt &4NV Compatible



Technical parameters

• Storage Temperature -40℃~70℃
• Operating Temperature -25℃~50℃
• Vibration 1000G



Night Vision (NV)

• Start Up Time 3s
• Working Distance
  (Indentify Target)W/O IR Illuminator:
  75 Meter @ 0,01 1x
  W/ IR Illuminator:
  150 Meter @ 0,01 1x
• Zoom 1x, 2x, 4x,8x
• Lens Focus 25mm
• Aperture F1.2
• Focus Range 5m~infinity
• Field of view 7.2°×5.3°
• Spectral Range 400nm~950nm
• Sensor Resolution 1920*1080/4um
• OLED Resolution 1024×768
• Frame Rate 30FPS/60FPS
• Reticle and Zeroing Yes
• Image Zeroing Yes
• IR Illuminator Yes
• Storage 32G,EMMC
• Imagen Style NV
• External Interface 5V/2A,USB Type-C



Electrical parameters

• Battery 2×18350
• Battery Life 6 Hours



Mechanical parameter

• Window Size 3.2cm x 2.49cm
• Size 94x56x89mm
• Central Height Mount 41.4mm
• Weight 531g
• Housing Material 7075 T6 Aluminum
• Surface Finish Anodized
• Housing Color Black
• Adjustment per Click 0.5 MOA
• W&E Travel Range ±50 MOA
• Protection Class IP67
