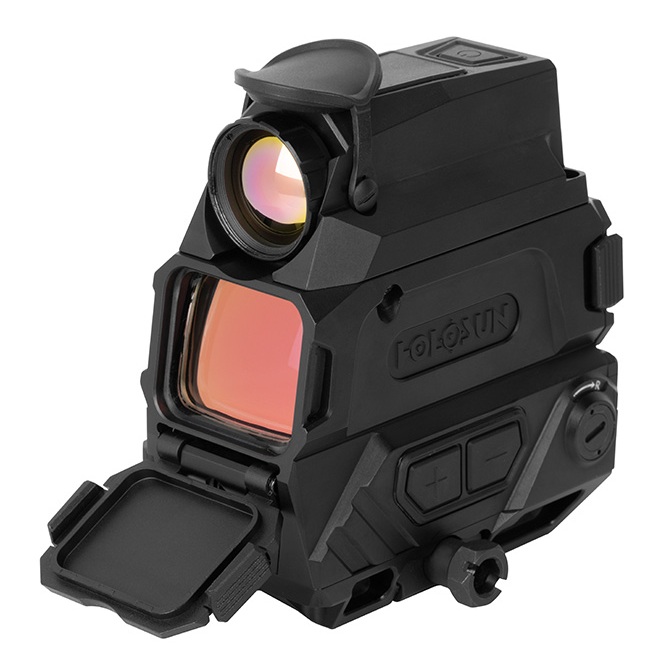

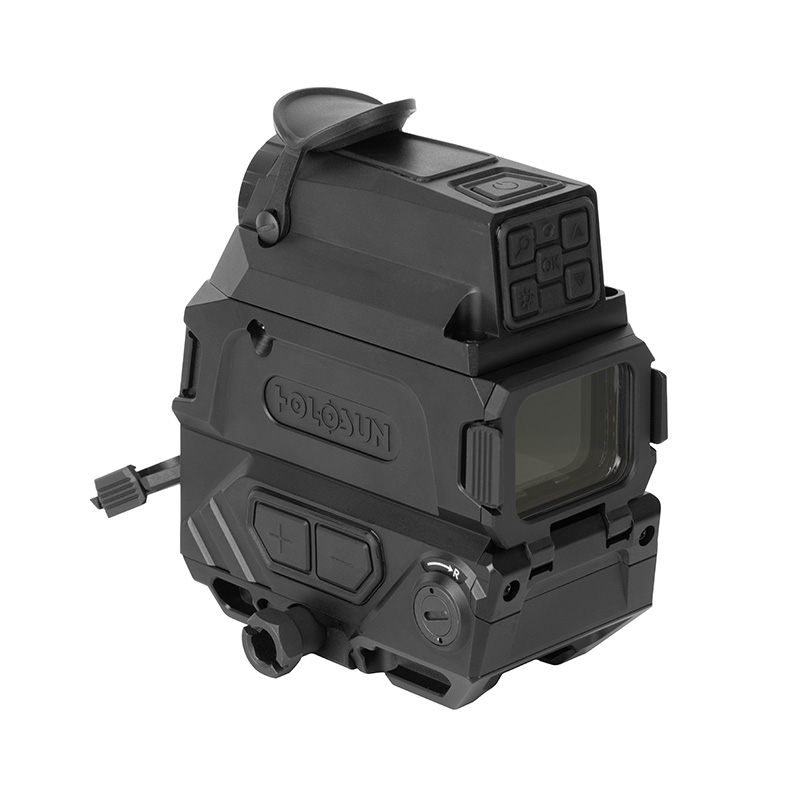

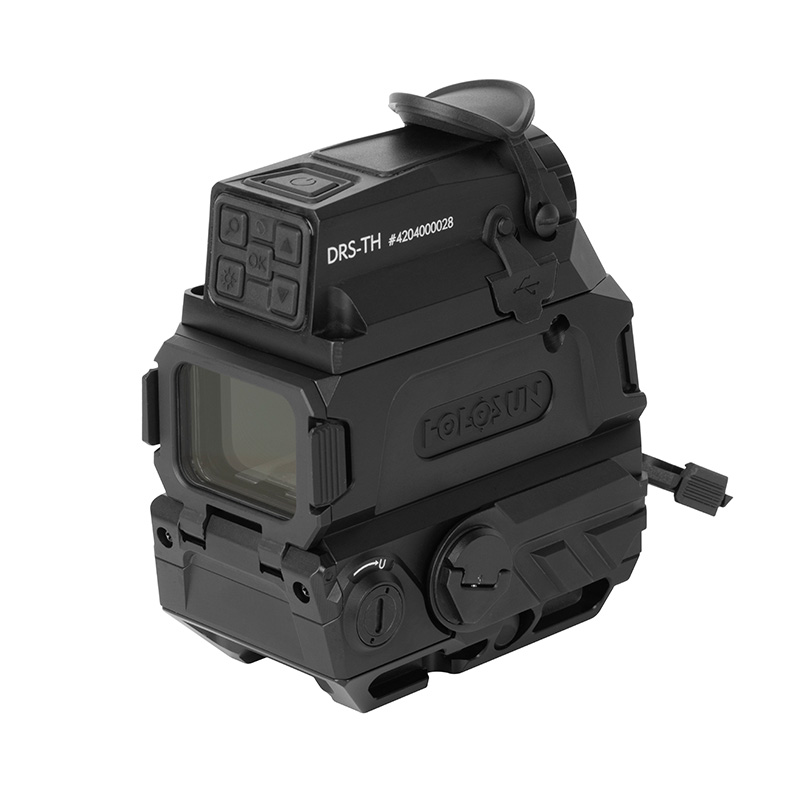

Holosun DRS-TH Digital Reflex Sight - Thermal
[70156973]

The Holosun DRS-TH (Digital Reflex Sight - Thermal) redefines the boundaries of red dot optic technology.

Using a 256x192 Thermal Sensor, the DRS-Th fuses together your traditional red dot optic with a thermal overlay to give you the best of both worlds.

Up to 10 hours of battery runtime for the thermal sensor and over 50,000 hours of runtime for your red dot gives users an optic that can keep up with the most demanding tasks.

White Hot, Black Hot, Outline and Highlight modes give you flexibility depending on the settings.

Capture the action through the thermal with the built in internal video recording that is as easy as a single button press.

If thermal isn't needed for the task, simply flip down the front lens cap and use the DRS-TH just as you would any of our traditional red dot optics giving you the best of both worlds.

In the Box

• 2x 18350 Li-ion Rechargeable Batteries
• Multi Tool
• Wrench
• Lens Cloth
• USB Cable

Reflex Sight Data

• Light Source LED
• Wavelength 650nm
• Reticle 2 MOA Dot & 65MOA Circle
• Selectable Reticle Yes
• Shake Awake Technology Yes
• Memory Yes
• No Parallax Yes
• Unlimited Eye Relief Yes
• Magnificatin 1x
• Multi-Coatings Yes
• Brightness Settings 8 DLt &4NV Compatible

Technical parameters

• Storage Temperature -40℃~70℃
• Operating Temperature -25℃~50℃
• Vibration 1000G

Thermal Data (TH)

• Start Up Time 5s
• Working Distance
  (Indentify Target)Finding Target: 500m
  Identifying Target: 300m
• MRTD ＜50mK
• Zoom 1x, 2x, 5x
• Lens Focus 25mm
• Aperture F1.1
• Focus Range 5m~infinity
• Field of view 7.2°×5.3°
• Spectral Range 8-12um
• Sensor Resolution 256×192 /12um
• OLED Resolution 1024×768
• Frame Rate 50FPS
• Reticle and Zeroing Yes
• Image Zeroing Yes
• Storage 32G,EMMC
• Image Style White heat, black heat,
  highlight, hook edge, false color
• External Interface 5V/2A,USB Type-C

Electrical parameter

• Battery 2×18350
• Battery Life 12 Hours (OB mode: No Wifi, Recording)
  7 Hours (Full Function)

Mechanical parameter

• Window Size 3.2cm x 2.49cm
• Size 94x56x89mm
• Central Height Mount 41.4mm
• Weight 509g
• Housing Material 7075 T6 Aluminum
• Surface Finish Anodized
• Housing Color Black
• Adjustment per click 0.5 MOA
• W&E Travel Range ±50 MOA
• Protection Class IP67
